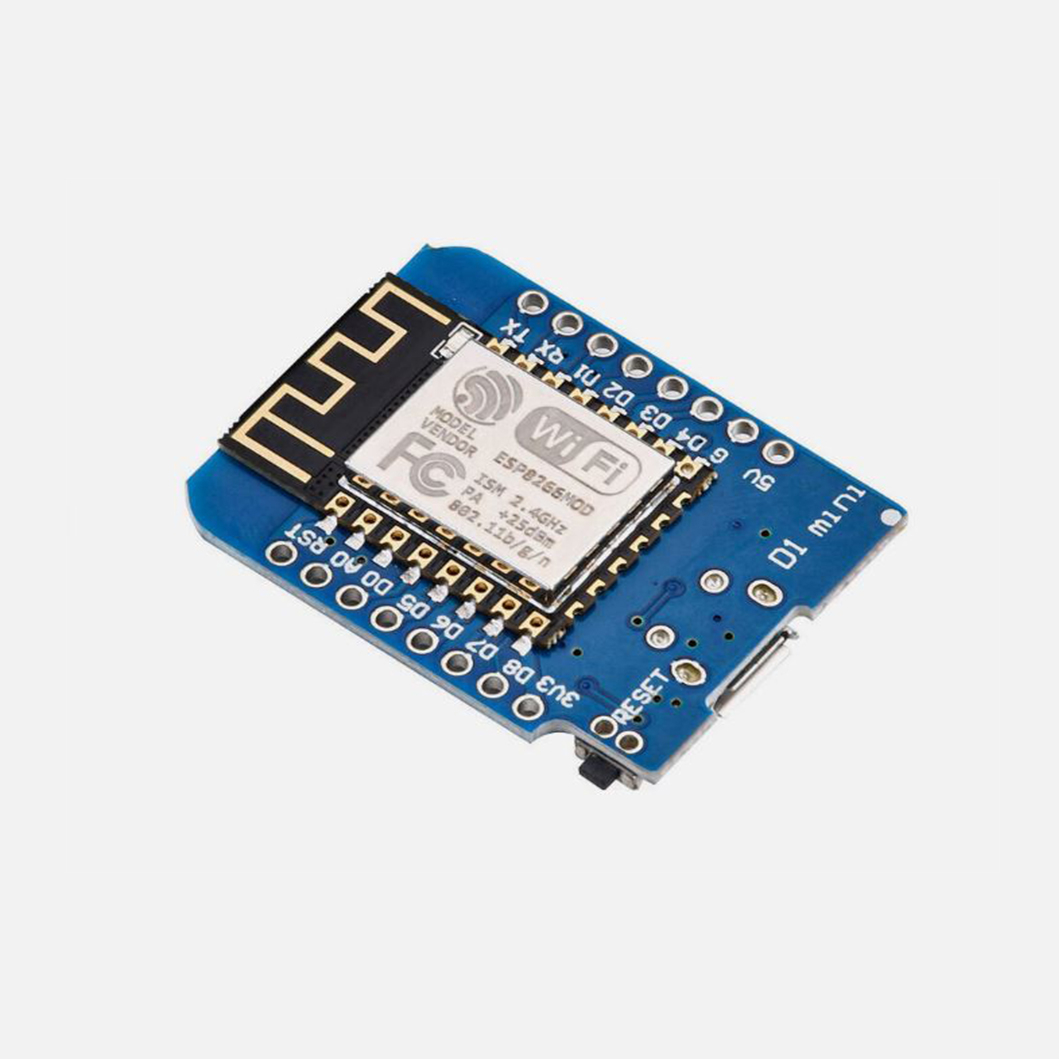

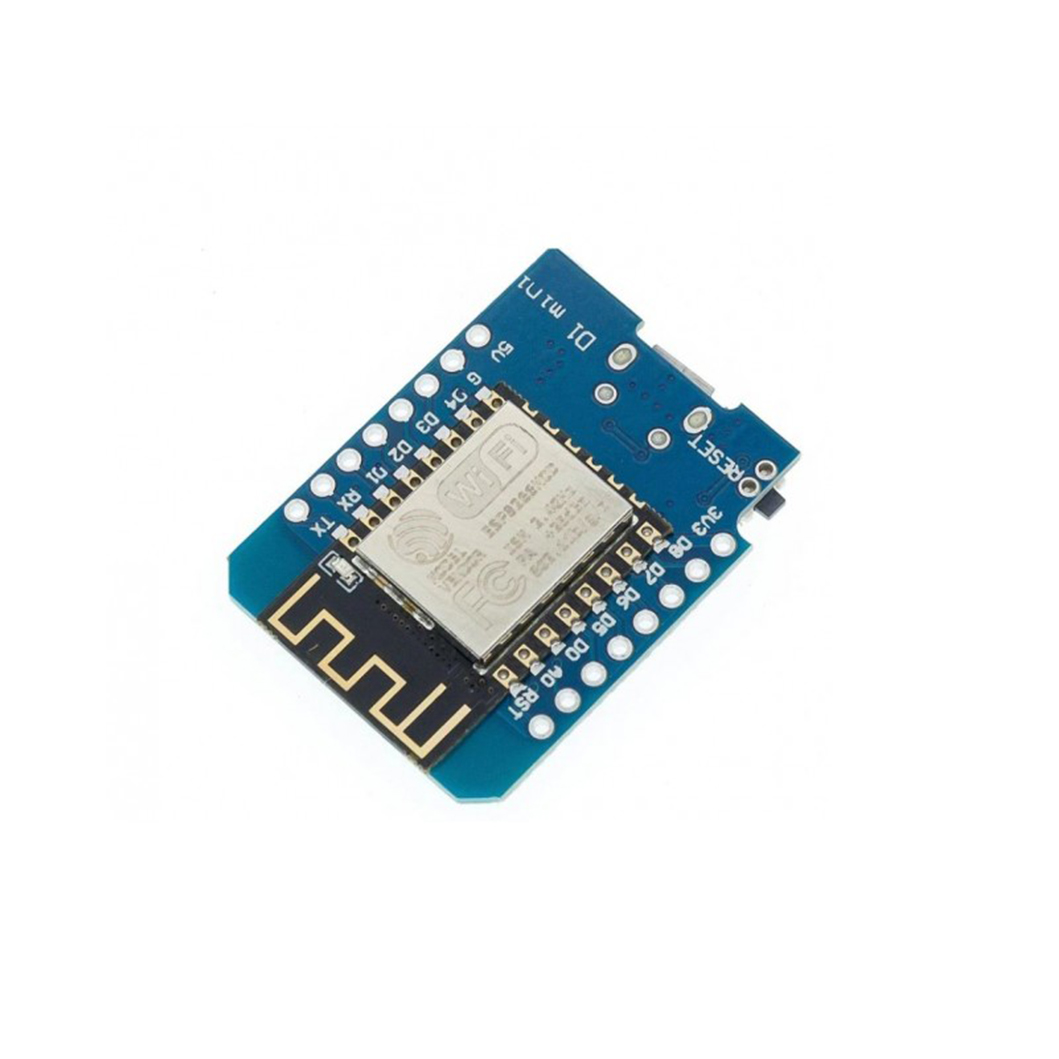

The WEMOS D1 Mini (ESP-12F) with Type-C USB is the most popular compact Wi-Fi board for IoT developers. At Electrapac, we recommend this "Mini" powerhouse for projects where space is limited but high performance and wireless connectivity are non-negotiable.

Product Overview

This version of the D1 Mini features the upgraded ESP-12F module, providing better antenna performance and stability than older models. The most significant upgrade is the USB Type-C port, which offers a more durable connection and compatibility with modern cables. Based on the ESP8266EX chip, it is fully compatible with the Arduino IDE, NodeMCU, and MicroPython, making it the perfect "brain" for smart home sensors and small robotics.

Key Features for Electrapac Customers

• Modern Type-C Connectivity: Improved durability and reversible plugging compared to the fragile Micro-USB ports of previous generations.

• Compact Form Factor: Measuring only 34mm x 26mm, it fits easily into small project boxes or 3D-printed enclosures available at www.electrapac.com.

• Massive Ecosystem: Compatible with a wide range of "D1 Mini Shields" (Relay, DHT11, OLED, Battery, etc.), allowing you to stack functionality without wiring.

• Integrated Wi-Fi: Supports 802.11 b/g/n with WPA/WPA2 security, perfect for connecting to your home router or acting as a standalone Access Point.

• OTA (Over-The-Air) Updates: Flash your code wirelessly once the device is installed in a hard-to-reach location.

Pinout & Setup Guide

When programming your Electrapac D1 Mini in the Arduino IDE, select "WEMOS D1 R2 & mini" from the Boards Manager.

1. VCC (5V/3V3): Power the board via USB or the 5V/3.3V pins.

2. GND: Common ground.

3. D1 & D2: Standard pins for I2C communication (SCL/SDA).

4. A0: The single analog pin (Note: The ESP8266 ADC is 0-1V, but this board includes a resistor divider to allow 0-3.2V input).

Primary Applications

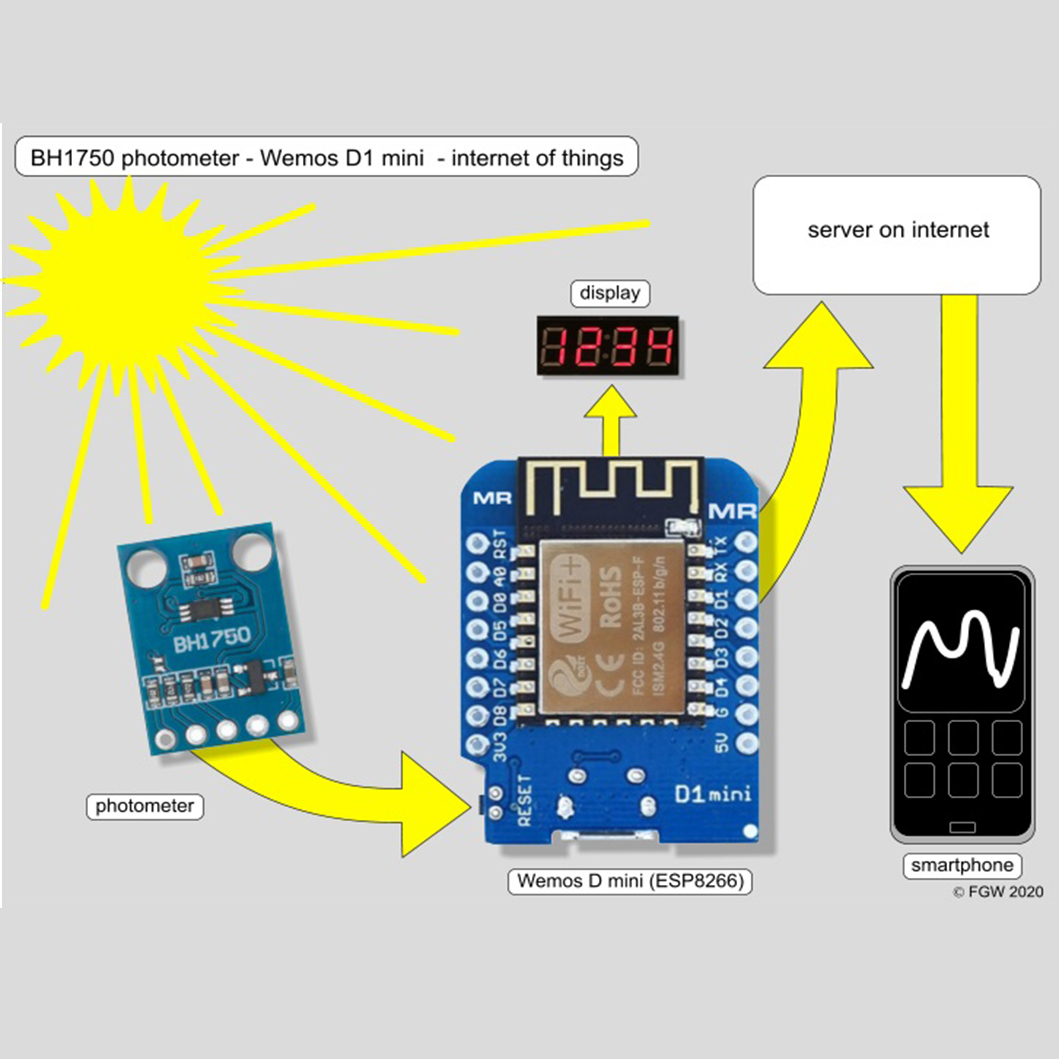

• Smart Home Sensors: Building Wi-Fi-connected temperature, humidity, or motion sensors.

• Blynk/Home Assistant: Integrating physical hardware into your mobile dashboard or smart home server.

• Wi-Fi Deauther/Scanner: Small-scale network testing and educational security tools.

• Wireless Displays: Driving small OLED screens to show weather, crypto prices, or YouTube subscriber counts.

Why Shop at Electrapac?

We source the D1 Mini Type-C with high-quality voltage regulators (ME6211 or equivalent) to ensure stable 3.3V power even during the high-current peaks of Wi-Fi transmission. At www.electrapac.com, we provide the compact IoT solutions that make "Smart Everything" possible.
