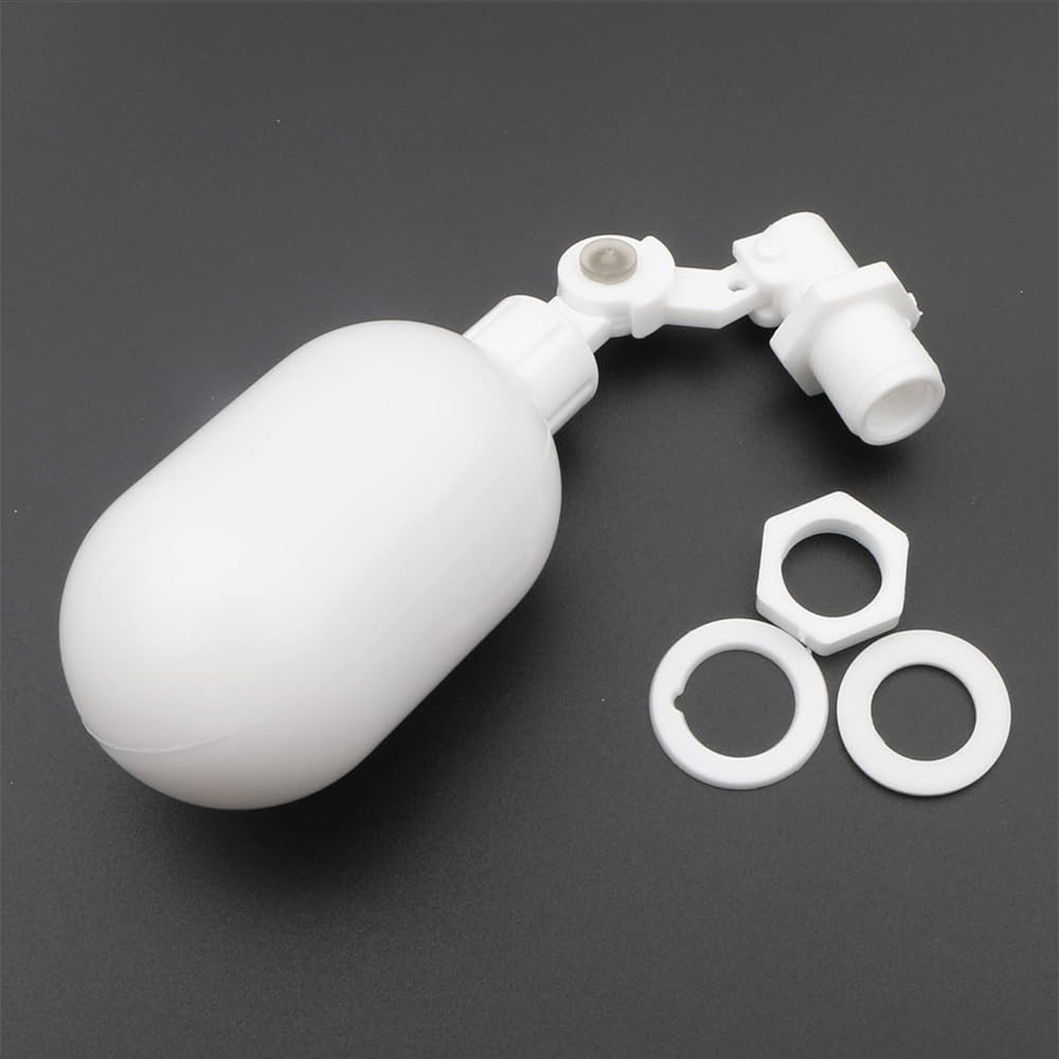

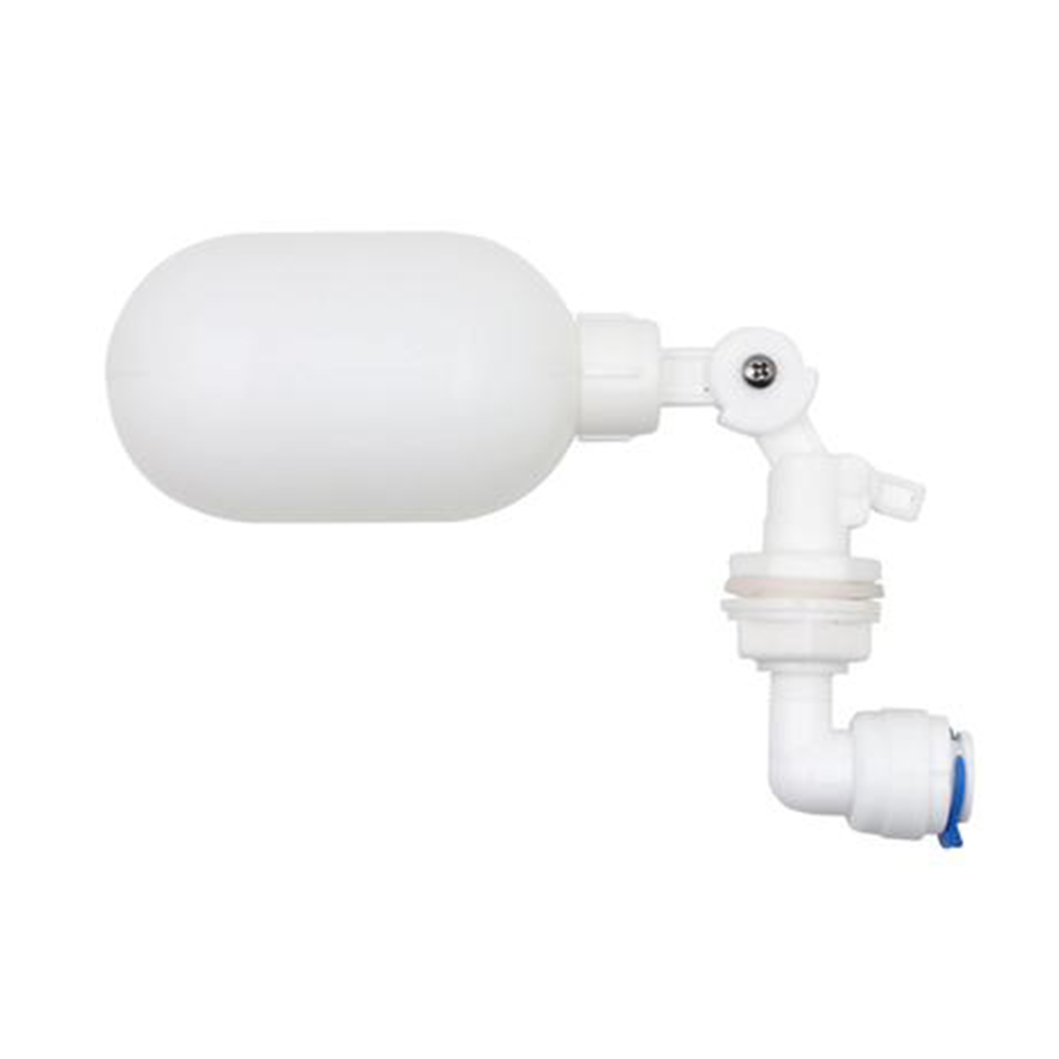

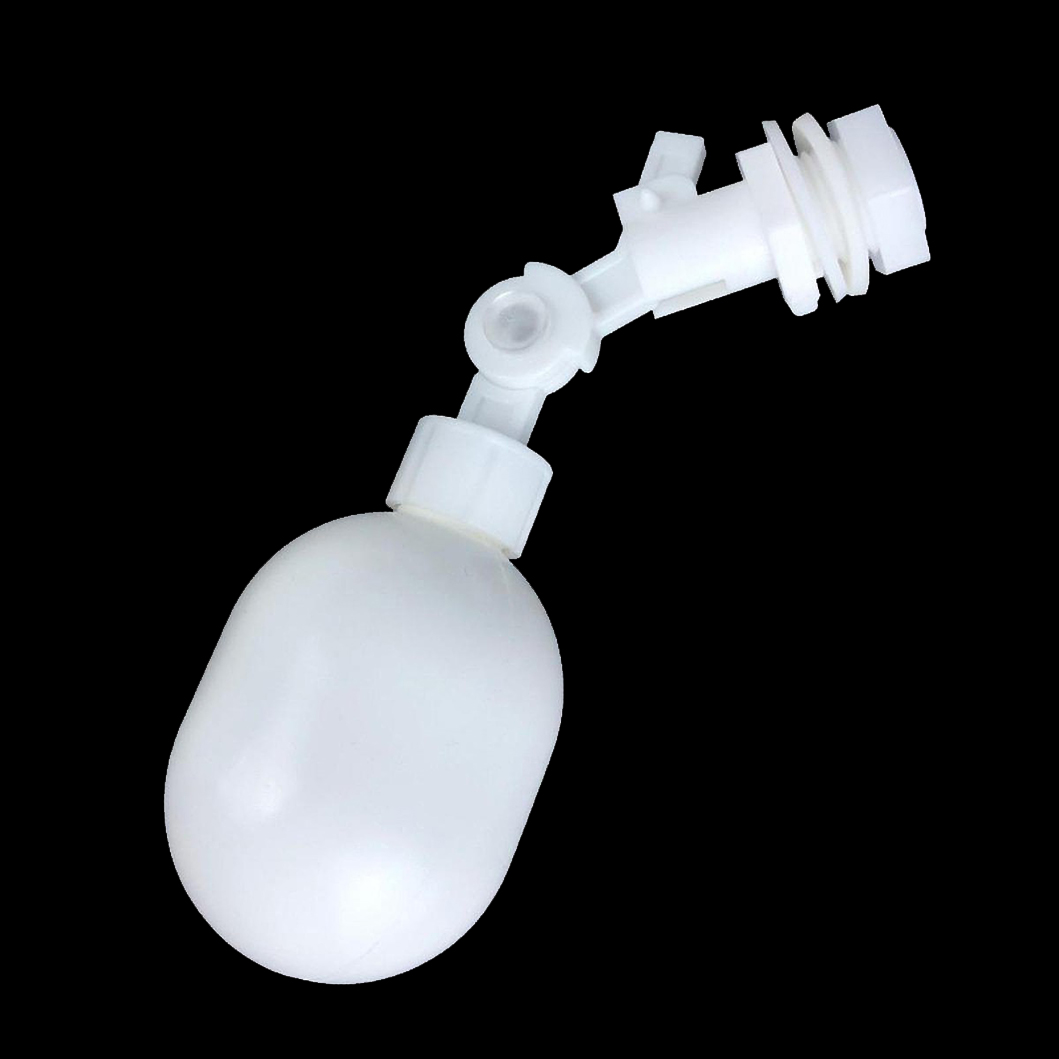

A Non-Electric Water Level Float Valve is a mechanical switch designed to automatically control the flow of water into a tank or reservoir without the need for sensors, wires, or a power source. It is the most common solution for maintaining water levels in RO (Reverse Osmosis) purifiers, water dispensers, and small storage tanks.

 How It Works

The valve operates on the principle of buoyancy:

1. Water Level Low: The plastic float hangs down, pulling a needle or diaphragm open to allow water to flow into the tank.

2. Water Level Rises: As the water reaches the float, it pushes the float upward.

3. Shut-off: Once the float reaches a horizontal position, the mechanical leverage pushes a rubber seal against the inlet, instantly stopping the water flow.

   Features & Benefits

   • Zero Electricity: Completely safe for use inside water tanks; no risk of short circuits or electric shocks.

   • Automatic Overflow Prevention: Essential for RO systems to ensure the kitchen or office doesn't flood once the storage tank is full.

   • Corrosion Resistant: Made entirely of plastic and rubber, so it will not rust or contaminate drinking water.

   • Adjustable Arm: Most models feature a screw on the arm that allows you to adjust the angle of the float, letting you "set" exactly how high the water level should go.

   • Easy Installation: Typically uses a "Push-to-Connect" fitting that accepts standard 1/4" PE tubing used in water purifiers.

   Common Applications

   • Reverse Osmosis (RO) Systems: The primary shut-off mechanism for the main storage tank.

   • Water Dispensers: Maintains the level in the internal cold/hot reservoirs.

   • Aquariums: Used in "Auto Top-Off" (ATO) systems to replace evaporated water.

   • Pet Fountains: Keeps large pet watering bowls filled from a main line.
