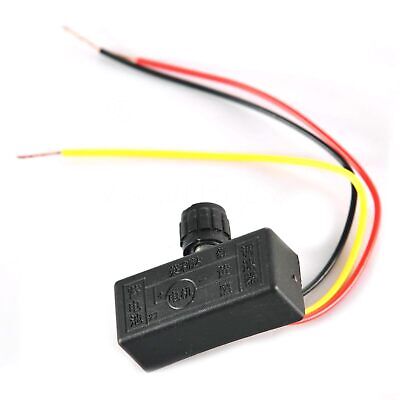

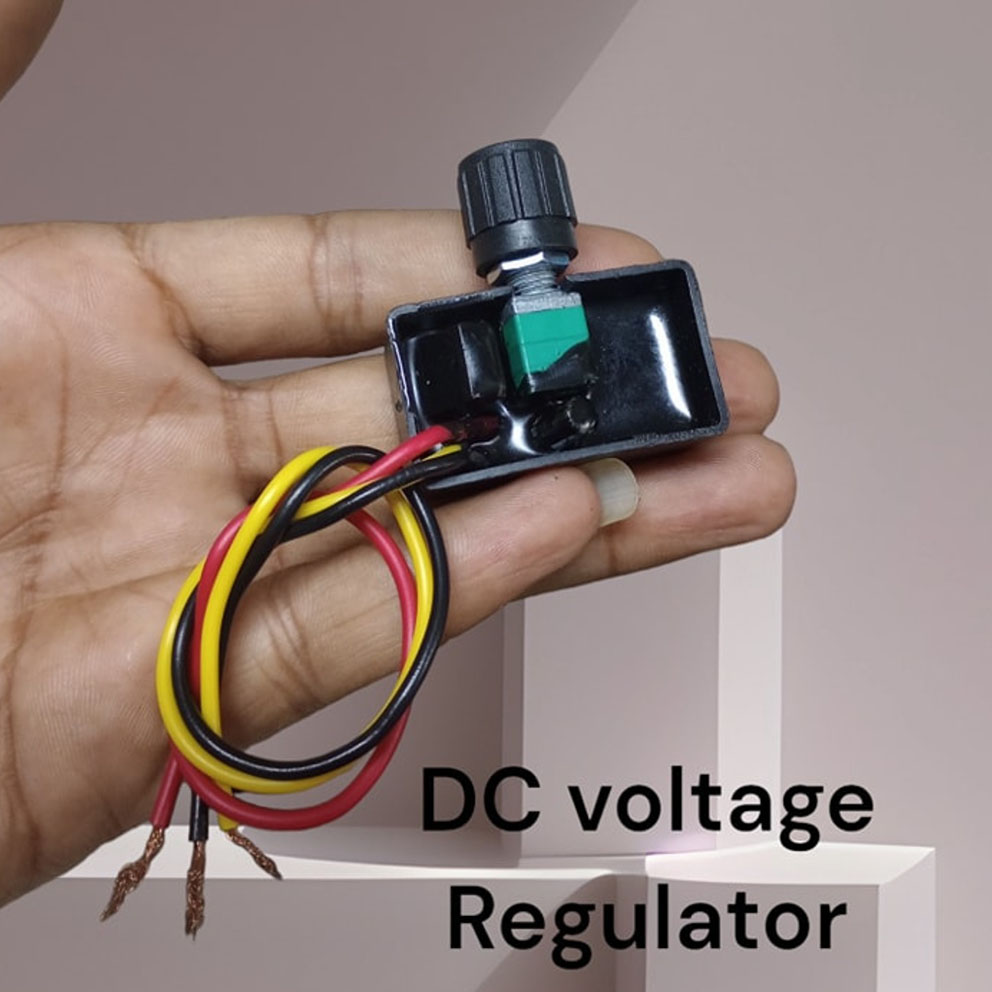

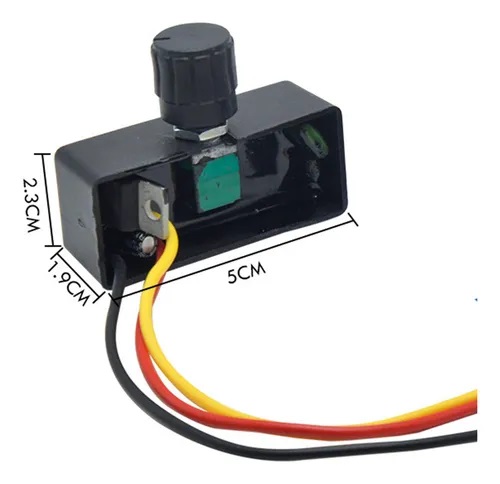

About this item VOLTAGE RATING: 12V DC power supply compatibility with built-in PWM technology for precise speed control VERSATILE APPLICATION: Compatible with various DC motors, fans, and similar devices requiring speed regulation COMPACT DESIGN: Small form factor with durable black housing and convenient adjustment knob for easy operation WIRING SETUP: Three-wire configuration with colour-coded cables (red, black, blue) for straightforward installation CONTROL FEATURES: Stepless speed regulation capability allowing smooth transitions from minimum to maximum speeds Read more
The PWM Motor Speed Controller (12V DC) is a compact and essential tool for precisely managing the airflow and noise levels of cooling fans. At Electrapac, we recommend this module for PC enthusiasts, server maintenance, and DIY electronics projects where temperature management and silent operation are priorities.
This regulator uses Pulse Width Modulation (PWM) to adjust the speed of DC motors and fans. Unlike simple voltage dimmers, PWM maintains higher torque at lower speeds and is significantly more energy-efficient, making it ideal for 12V DC systems
For a reliable setup using components from
Input Power: Connect your 12V DC source to the "IN+" and "IN-" terminals. Ensure correct polarity to avoid blowing the integrated fuse.
Fan Connection: Connect your 3-wire or 2-wire fan to the "OUT" terminals.
Operation: Turn the knob clockwise to click the unit "ON." Continuing to turn clockwise will smoothly increase the fan speed to its maximum.
Note: This controller regulates speed by adjusting the duty cycle of the 12V signal. It is compatible with almost all 12V brushed motors and 2/3-wire brushless fans.
We curate high-performance cooling solutions that are tested for reliability and safety. Find this PWM controller and a wide range of 12V fans at
| Specifications | Descriptions |
|---|---|
| Operation Mode | manual |
| Operating Voltage | DC 12V (Range: 8V – 15V) |
| Max Current Capacity | 3A (Combined total for connected fans) |
| Interface Type | 3-Wire / 2-Wire Compatible |
| Control Method | PWM (Pulse Width Modulation) |
| Adjustable Range | 0% – 100% (Stepless adjustment) |
| Circuit Consumption | < 20mA (Standby) |
| Color | Black Housing / PCB |
| Package | 1 x 1 12V PWM Motor Speed Controller |
